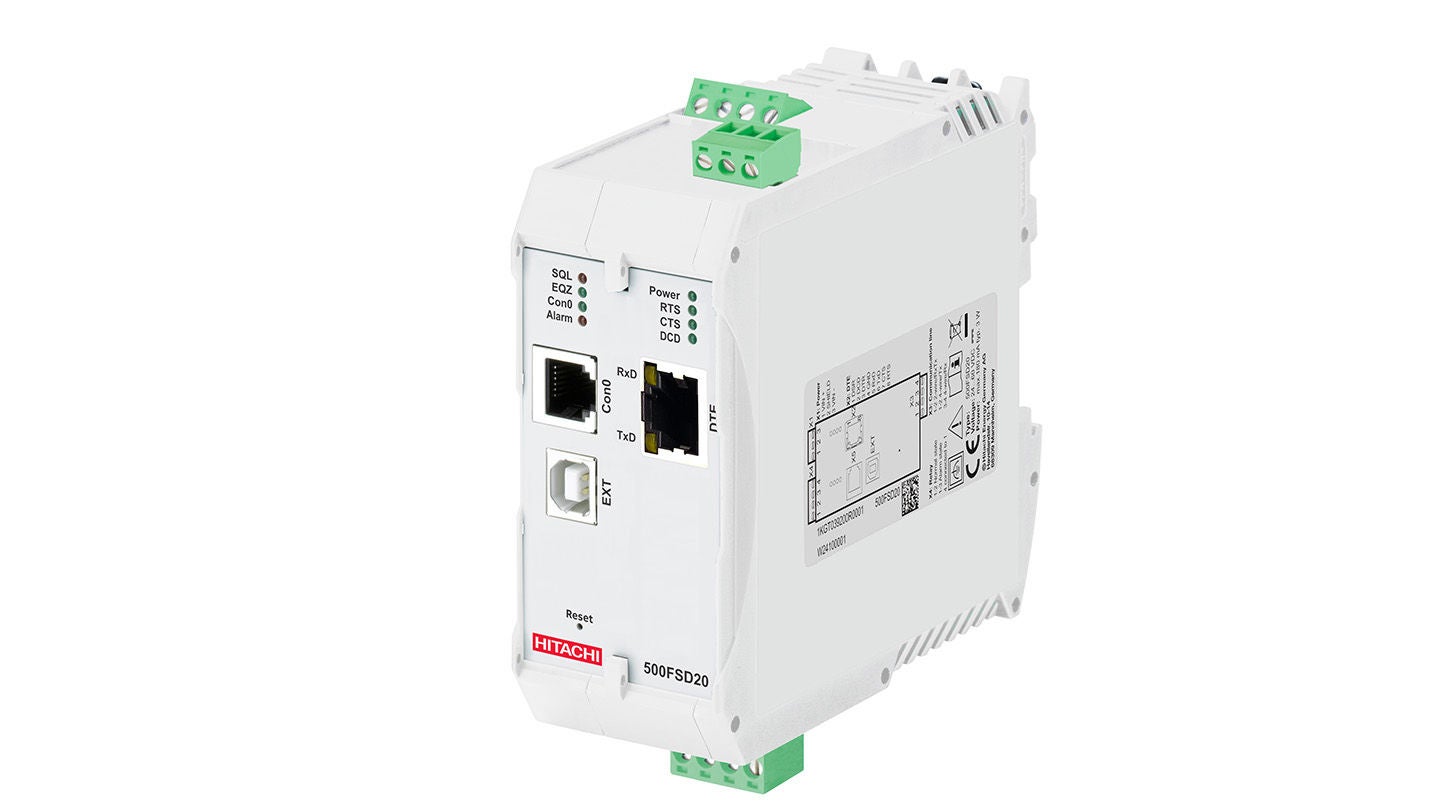

Serial Communications 500FSD20 Modem 2400 baud V.23, R.35 / R.37 / R.38A
The 500FSD20 modem is designed for the operation on telecontrol communication lines. The 500FSD20 modem allows the assignment of a two- or four-wire line with communication channels of 50 baud up to 2400 baud.
Key highlights
- Voice frequency telegraphy device (VFT)
- Power supply 24...60 V DC
- Channel frequency and bandwidth are selectable according to CCITT standards (R.35...R.38 or V.23/ 1200 Baud)
- Additional 600 baud or 2400 baud channel
- Product details
- Resources
Overview
The 500FSD20 is interoperable with RTU500 and standard-compliant third-party equipment. However, it can also be connected to other data terminal equipments because it operates at the interfaces like a universal FSK-modem in the voice-band range (300-3400 Hz) according to CCITT.
The modem allows the assignment of a twoor four-wire line with communication channels of 50 baud up to 2400 baud (24 channels 50 baud, 12 channels 100 baud, 6 channels 200 baud, 2 channels 600 baud, 1 channel 1200 baud).
A high-resistance staggering is possible with the 500FSD20 modem on multi-drop lines. Full- and halfduplex operation is possible without special additional provisions like hybrid termination circuit according to channel assignment and selected two wire or four-wire line. It is designed for the transfer characteristics of localcable-wires. A digital signal processor (DSP) is responsible for the conversion of the binary information into the voice band and vice versa. Its high processing capacity allows beside others a high selective channel filtering (90 dB) and thereby an unrestricted channel assignment.
The 500FSD20 has a built-in overvoltage protection (OVP) against transient voltages.
