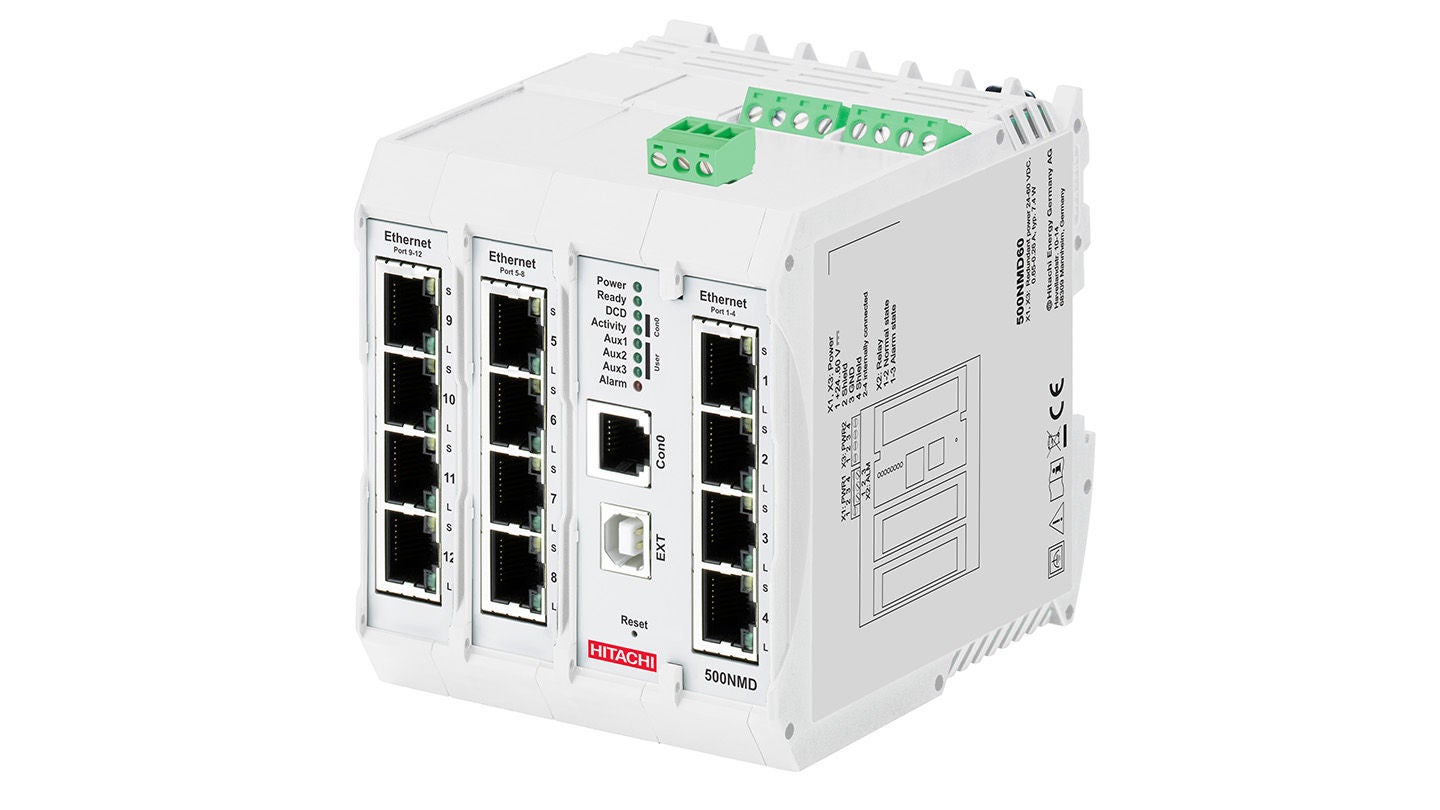

Managed Ethernet switch 500NMD60 -Industrial managed layer-2 switch
The DIN rail mountable 500NMD60 is a managed plug-and-play layer-2-switch providing 12x Gigabit Ethernet auto-negotiating RJ45 ports with auto MDI/X, as well as R0001: 1x RS-232, R0011: 1x RS-232/RS-485 interface suitable for tunneling of serial protocols.
Key highlights
- 12 x 10/100/1000 Ethernet IEEE 802.3 / IEEE 802.3u / IEEE 802.3ab (10Base-T / 100Base-TX / 1000Base-T)
- 1 x RS-232 suitable for serial protocols
- 1 x alarm relay isolated changeover contact
- Power supply 24 … 60 V DC
- Product details
- Resources
Overview
The switch is able to provide redundant topologies by the Spanning Tree Protocol (STP / RSTP / MSTP). A connection to PVST+ networks is also possible. Alternatively, the Ethernet Ring Protection Switching protocol (ITU-T G.8032 ERPS) can be used.
VLAN segments and serial data tunneling are supported.
The device can be used for converting between the serial telecontrol protocol IEC 60870-5-101 and the TCP-IP-based IEC 60870-5-104, as well as for converting between Modbus-RTU and Modbus-TCP.
Ethernet may be distributed within a station through the twelve RJ45 ports of the switch.
