LEGACY PRODUCT

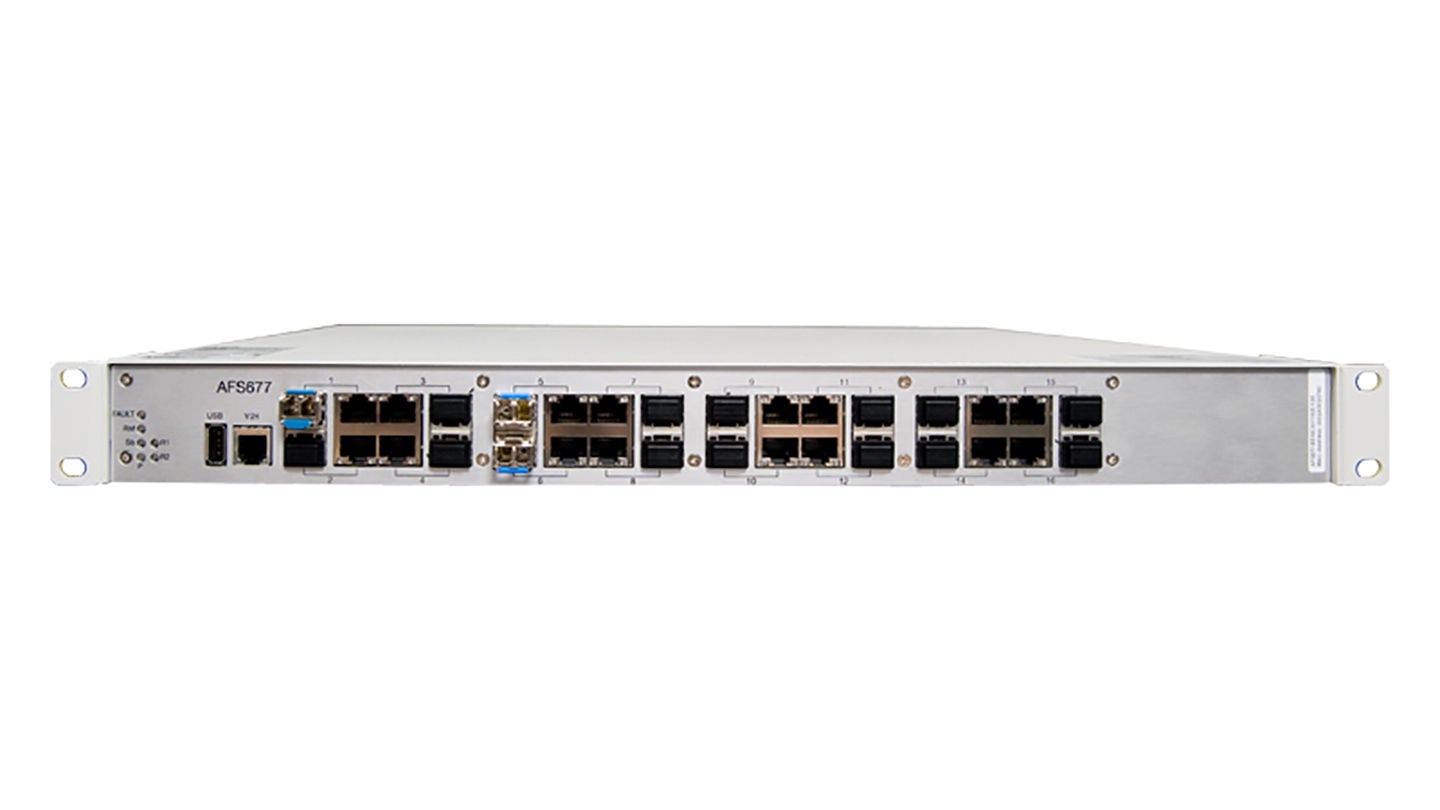

AFR677 Router
Hitachi Energy’s AFF677 router embodies all the functionality of the switch, but adds the ability to direct traffic based on the IP address (ISO Level 3) to reduce irrelevant messages being received, and with four power over Ethernet (PoE) ports and four Gigabit Ethernet ports the AFF677 has the power and speed to deliver.
Key highlights
- 19” managed switch
- Metal housing, ports on front or on rear
- Redundant power supply possible
- Product details
- Resources
Overview
The product you are looking for is not available anymore. For more information, you can contact us by clicking on the Contact button at the bottom of the page.
Packet routing allows greater granularity in filtering content, to ensure targeted messages are delivered promptly without cluttering unrelated networks. Hitachi Energy's AFR677 delivers that router functionality in a substation-friendly package.
The router will take a low voltage, DC, supply from 9.6v upwards, but will happily run from high-voltage DC or AC supply and supports a redundant supply to ensure continued connectivity in the event of supply failure.
Features
19” managed switch
Metal housing, ports on front or on rear (typical substation configuration)
Up to 4 GbE ports (optical, electrical or combo ports)
Up to 4 PoE ports (only with power supply type H/Z)
Low voltage (9.6 - 60 VDC) or high voltage (48 - 320 VDC or 90 - 265 VAC) power supply
Redundant power supply possible
Spring clamps or connectors available
Typical power consumption without PoE: 10 - 40 W
16 GbE combo ports (TX RJ45 or SFP slot)
AFR offers L3 functionality RIPv1, RIPv2, OSPFv2 and router redundancy protocol VRRP
